Rigid Foam Polyols
Rigid polyurethane foam systems are closed-cell polymer networks formed by the reaction of polyols with isocyanates.
These systems are engineered for high thermal insulation, structural stability, and long-term durability.
They are widely used in insulation boards, refrigeration panels, sandwich panels, and cold storage applications.

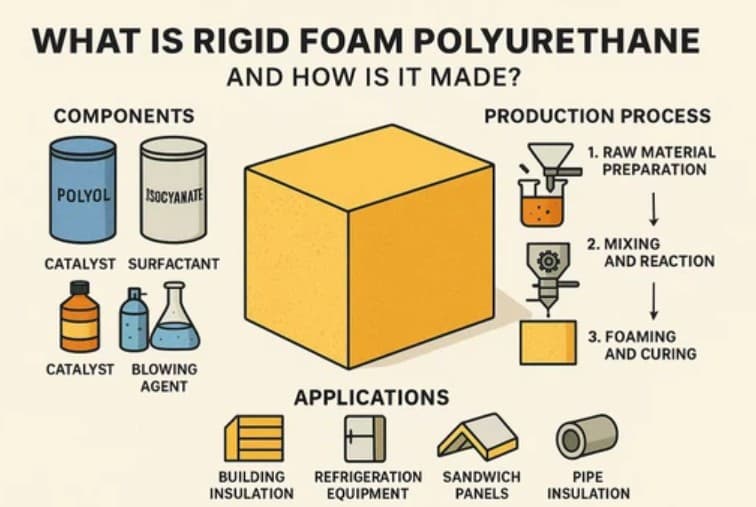

How Rigid Foam Systems Work
Rigid polyurethane foam is formed through a controlled reaction between polyol and polymeric MDI.
In PIR systems, higher isocyanate index improves thermal stability and fire resistance.
In PUF systems, formulation is optimized for cost-effective insulation and flexibility.
Our Rigid Foam Polyol Grades
PIR Foam Board Polyol
RENVIOL-PolyRig-2800
Polyester polyol developed for PIR rigid insulation systems.
Applications: PIR Insulation Boards, Cold Storage Panels, Continuous Sandwich Panels, Thermal Insulation Systems
Viscosity: 4000 - 7000 mPa.s @ 25°C
Hydroxyl Value: 240 - 280 mg KOH/g
PUF Foam Board Polyol
RENVIOL-PolyRig-2400
Polyester polyol for rigid polyurethane foam insulation systems.
Applications: Rigid Foam Boards, Refrigeration Panels, Construction Insulation, PUF Panel Systems
Viscosity: 3500 - 6500 mPa.s @ 25°C
Hydroxyl Value: 220 - 260 mg KOH/g
Technical Overview
| Product Code | Product | Hydroxyl Number | Viscosity | Water Content | Acid Value |
|---|---|---|---|---|---|
| RENVIOL-PolyRig-2800 | PIR Foam Board Polyol | 240 - 280 mg KOH/g | 4000 - 7000 mPa.s @ 25°C | - | ≤ 2.0 mg KOH/g |
| RENVIOL-PolyRig-2400 | PUF Foam Board Polyol | 220 - 260 mg KOH/g | 3500 - 6500 mPa.s @ 25°C | ≤ 0.1% | - |
